Overview

The Beinecke Rare Book & Manuscript Library is the rare book library and literary archive of the Yale University Library in New Haven, Connecticut. Established by a gift of the Beinecke family and given its own financial endowment, the library is financially independent from the university and is co-governed by the University Library and Yale Corporation.

Situated on Yale University's Hewitt Quadrangle, the building was designed by Gordon Bunshaft of Skidmore, Owings & Merrill and completed in 1963. It is one of the largest buildings in the world dedicated to rare books and manuscripts.

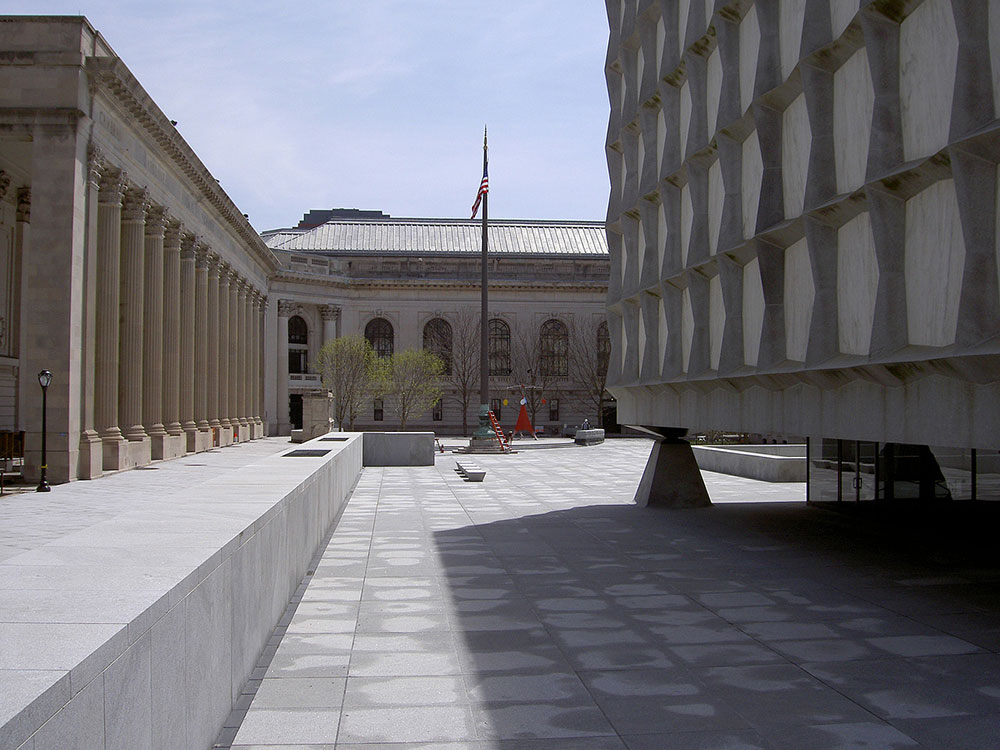

The building's marble and granite facade is supported on granite clad piers. A sunken courtyard, featuring a sculpture designed by Isamu Noguchi, is in the foreground at left.

Architecture

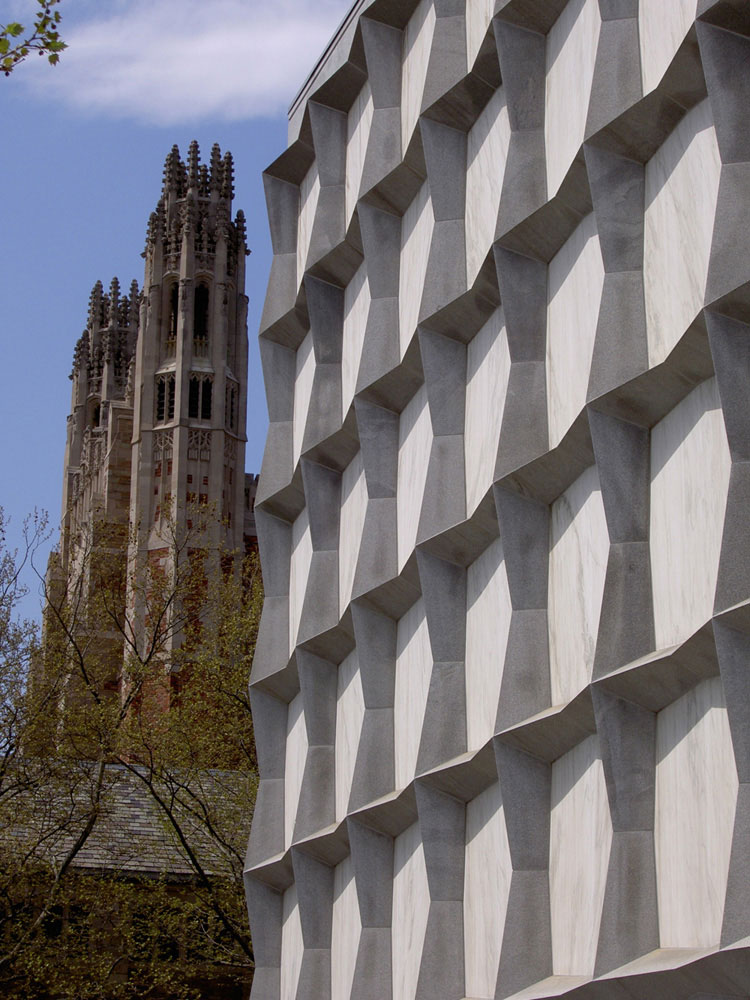

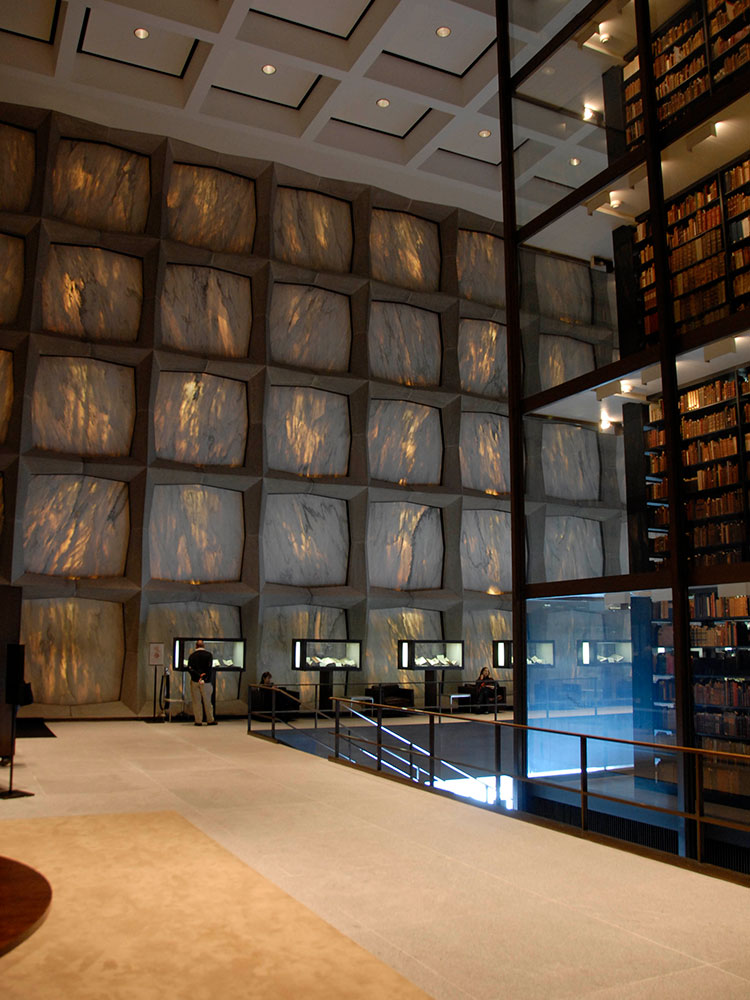

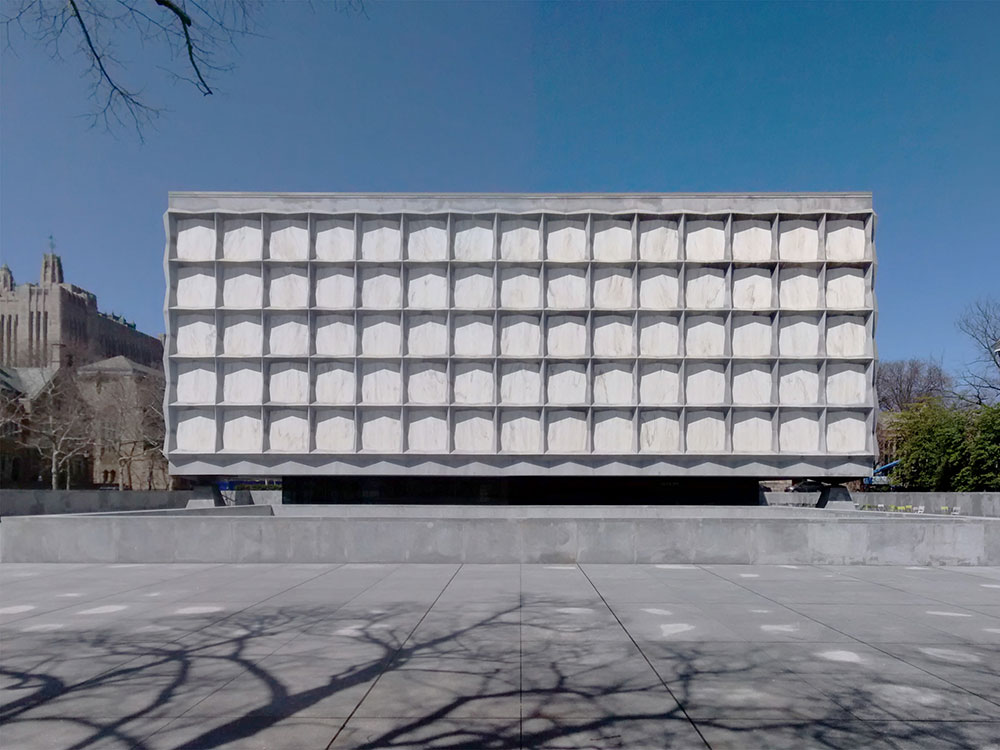

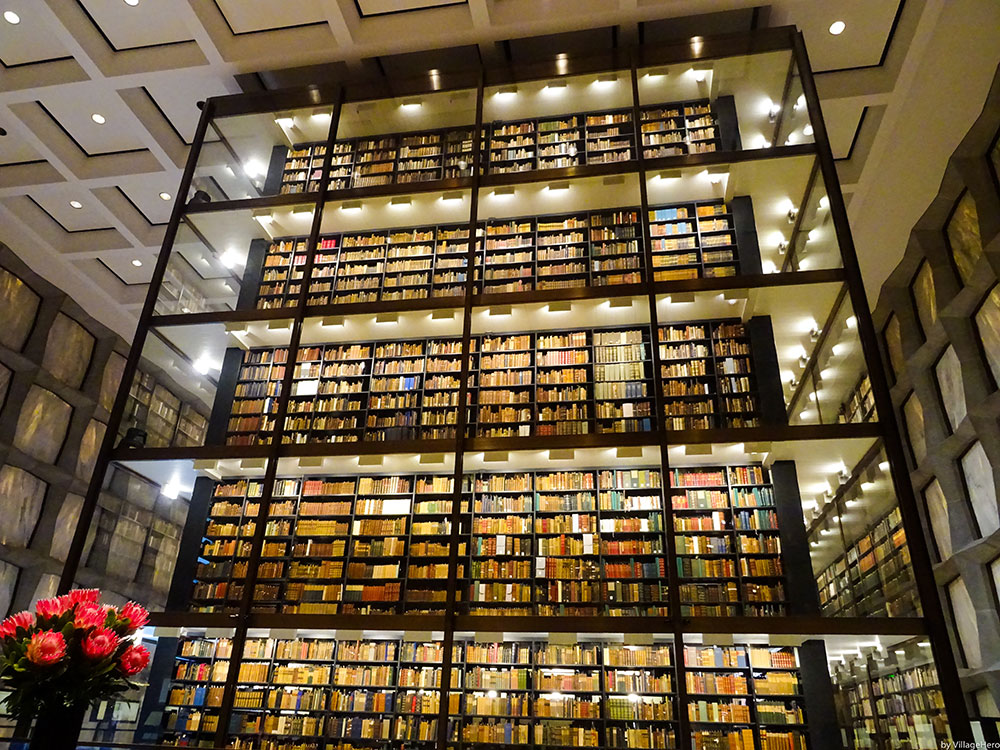

A six-story above-ground glass-enclosed tower of book stacks is encased by a windowless façade, supported by four monolithic piers at the corners of the building. The exterior shell is structurally supported by a steel frame with pylons embedded 50 feet (15 m) to bedrock at each corner pier. The façade is constructed of translucent veined marble and granite. The marble is milled to a thickness of 1.25 inches (32 mm) and was quarried from Danby, Vermont. On a sunny day the marble transmits filtered daylight to the interior in a subtle golden amber glow, a product of its thin profile. These panels are framed by a hexagonal grid of Vermont Woodbury granite veneer, fastened to a structural steel frame. The outside dimensions have "Platonic" mathematical proportions of 1:2:3 (height: width: length). The building has been called a "jewel box", and also a "laboratory for the humanities". The Modernist structure contains furniture designed by Florence Knoll and Marcel Breuer.

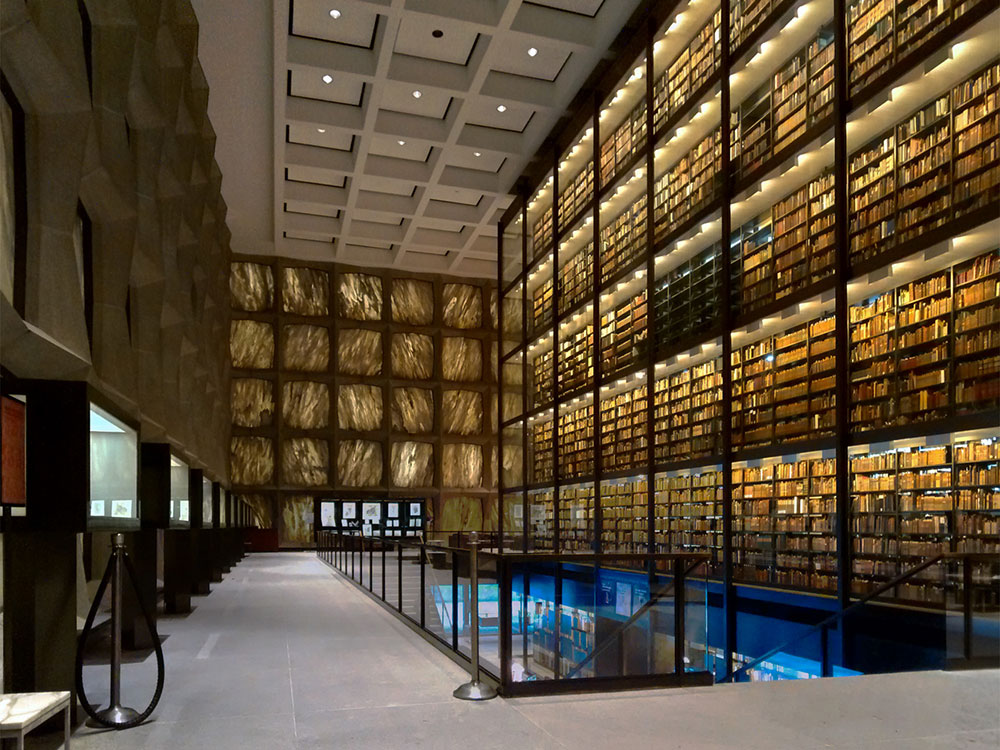

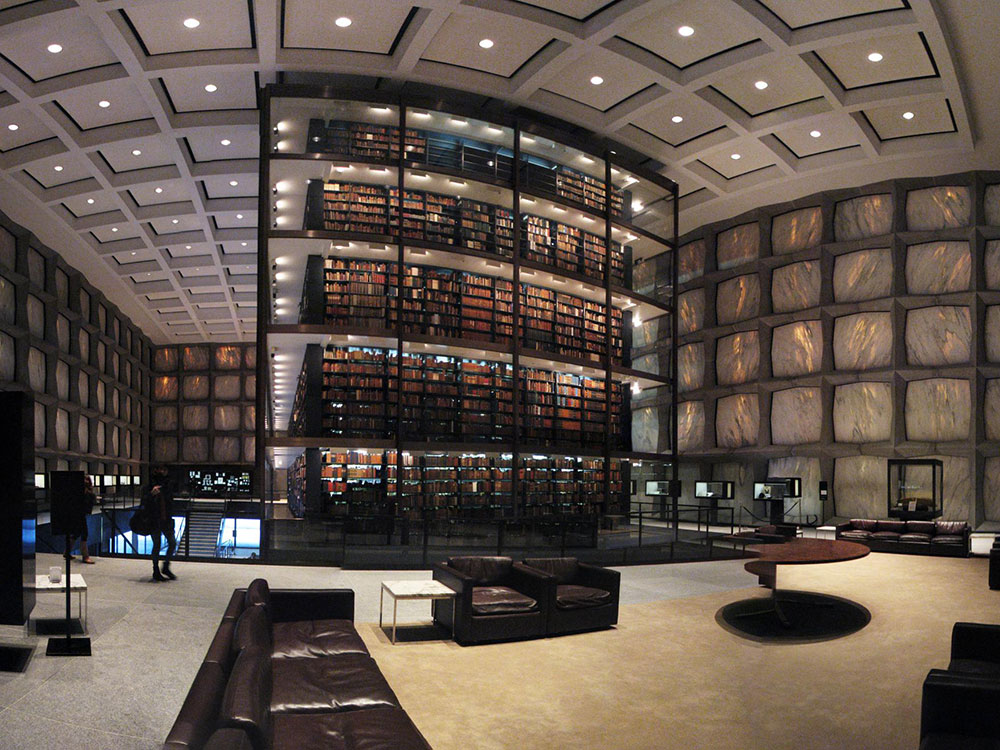

An elevated public exhibition mezzanine surrounds the glass stack tower, and displays among other things, one of the 48 extant copies of the Gutenberg Bible. Two basement floors extend under much of Hewitt Quadrangle. The first sub-grade level, the "Court" level, centers on a sunken courtyard in front of the Beinecke, which features The Garden (Pyramid, Sun, and Cube). These are abstract allegorical sculptures by Isamu Noguchi that are said to represent time (the pyramid), sun (the disc), and chance (the cube). This level also features a secure reading room for visiting researchers, administrative offices, and book storage areas. The level of the building two floors below ground has movable-aisle high-density shelving for books and archives.

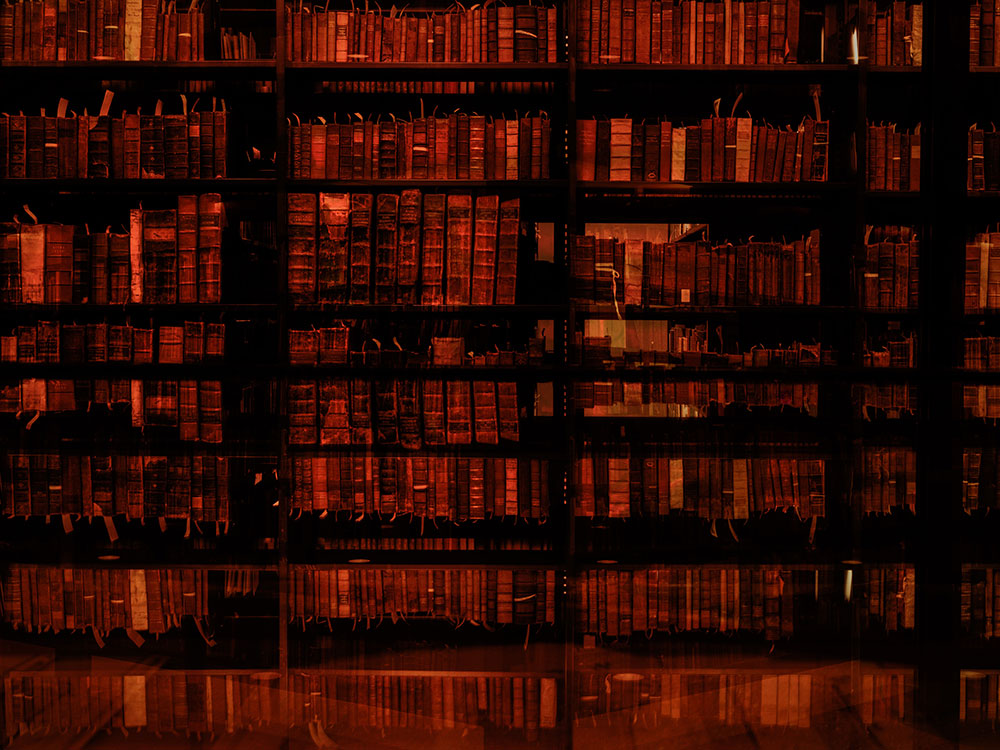

The Beinecke is one of the larger buildings in America devoted entirely to rare books and manuscripts. The library has room in the central tower for 180,000 volumes and room for over 1 million volumes in the underground book stacks. The library's collection, which is housed both in the library's main building and at Yale University's Library Shelving Facility in Hamden, Connecticut, totals roughly 1 million volumes and several million manuscripts.

The library is open to all Yale University students and faculty, and to visiting researchers whose work requires use of its special collections. In order to access materials, there are a few forms and policies that users must read.

In addition to items on permanent display such as the Gutenberg Bible, the Beinecke offers a year-round program of temporary exhibits drawn from its collections. Display cases are located on the mezzanine level and at the ground floor entry level, and may be freely viewed by the general public whenever the library is open.
